Toyota

Estima

2.4 ACR30, ACR40

Search by Vehicle
Search by Part Number

Manufacturer

Model

Variant

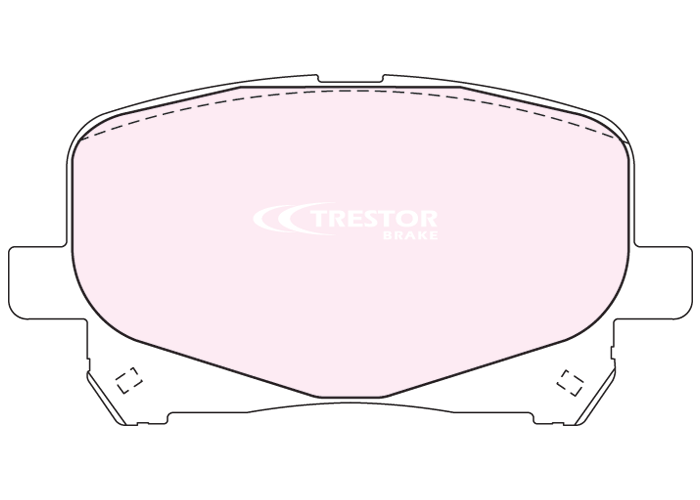

Front

TDB1752

Type

Disc Pad Set

Dimension

4 Pads 117 x 58 x 17 mm

Structure

4 Pads

FMSI

8346-D1227

WVA

24522

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Toyota

Estima (December 1999 - April 2003)

View all variants

2.4 ACR30, ACR40
2.4 ACR30W, ACR40W, 3.0 MCR30W, MCR40W
2.4 TCR10W (ABS), TCR11W, TCR20W (ABS), TCR21W
2.4 TCR10W (No ABS), TCR20W (No ABS)
2.4 TCR10W, TCR11W, TCR20W, TCR21W
2.4 TCR11W, TCR21W AWD
2.4G 5D Wagon [MCR30W] [MCR40W]
ACR 50

Toyota

Estima Hybrid (May 2001 - August 2003)

View all variants

2.4 AHR10W

Toyota

Previa (2004)

View all variants

2.4 [ACR50R]
2.4 MPV
TCR10, 11, 20 Series, Previa Van (U.S.A) 4 Wheel Disc
TCR10, 11, 20 Series, Previa Van (U.S.A) Rear Drum

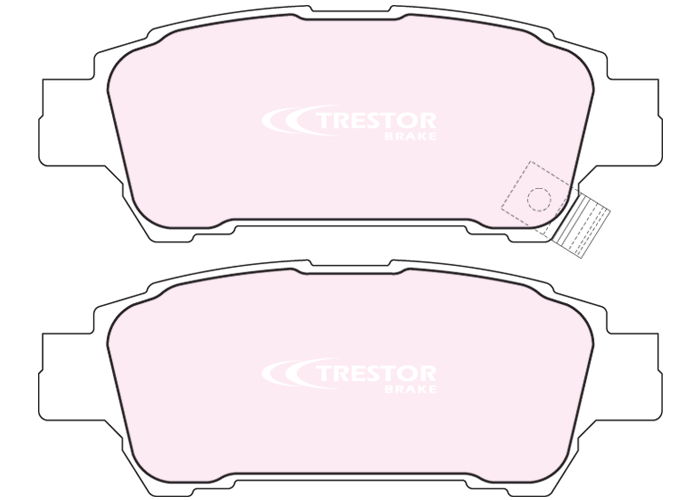

Rear

TDB1660

Type

Disc Pad Set

Dimension

4 Pads 113 x 44 x 16 mm

Structure

LH Inner + RH Inner + 2 Outer Pads

FMSI

7895-D995

WVA

23646

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Toyota

Alphard (2005 - 2007)

View all variants

2.4
2.4/3.5
3.0 / 3.5 MPV 5D

Toyota

Avensis Verso (December 2001 - October 2003)

View all variants

ACM20, CLM20 Wagon 2.0
ACM21 Wagon 2.4

Toyota

Estima (December 1999 - April 2003)

View all variants

Toyota

Estima Hybrid (May 2001 - August 2003)

View all variants

2.4 AHR10W

Toyota

Ipsum (2001 - 2009)

View all variants

2.0/2.2
2.4

Toyota

ISIS (2004 - 2011)

View all variants

1/8 1ZZ-FSE
2.0 1AZ-FSE

Toyota

Previa (2004)

View all variants

2.4 [ACR50R]
2.4 MPV
TCR10, 11, 20 Series, Previa Van (U.S.A) 4 Wheel Disc
TCR10, 11, 20 Series, Previa Van (U.S.A) Rear Drum

Toyota

RX60 (2000 - 2006)

View all variants

2.4 MPV

Toyota

Tarago (June 2000 - May 2003)

View all variants

ACR30 4D Wagon
ACR30 4D Wagon Akebono Caliper
ACR50, GSR50 4D Wagon
Tarago 2WD , Van Wagon
TCR10 11 2D Wagon
TCR10, 11, 20 Series (254mm Rear Drum No Pin)
TCR10, 11, 20 Series (254mm Rear Drum With Pin)
TCR10, 11, 20 Series 4 Wheel Disc
YM22
YR21G, YR22G
YR31 4WD (No Wear Sensor)
YR31 4WD (With Sensor)
