Isuzu

Big Horn

2.6 UBS17, 2.8 UBS55 (Disc / Disc)

Search by Vehicle
Search by Part Number

Front

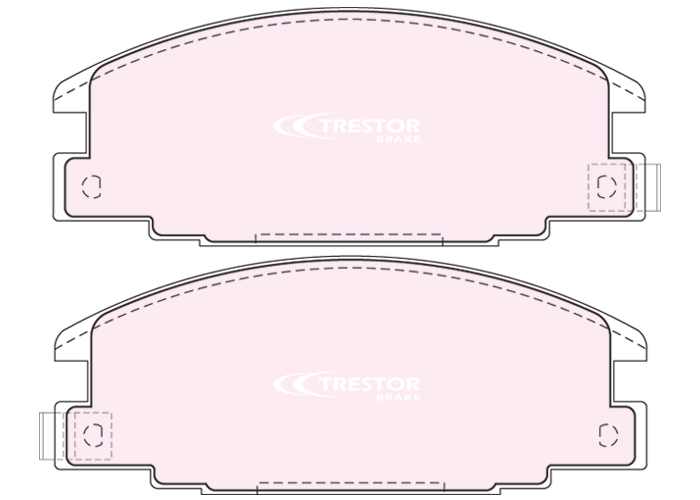

TDB1116

Type

Disc Pad Set

Dimension

4 Pads 127 x 51 x 16 mm

Structure

2 Left Pads + 2 Right Pads

FMSI

7253-D363

WVA

21544

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Holden

Jackaroo (1987 - 1992)

View all variants

3.1 UBS69
4WD
4WD (Alternative Rear Shoe)
4WD (Rear Shoe with Pin)
L2 V6 4WD,UBS25,UBS26

Holden

Rodeo (June 1987 - 1995)

View all variants

2.2, 2.8TD, 3.2 V6 [R9] (257mmDisc / 295mm Drum)
2.8TD, 3.0TD, 3.2 V6 [R9] (280mmDisc / Disc)
4x2, 4WD
LS, 4x2, 4WD
RA 4WD Pickup (14 inch) (Disc / 254mm Drum)
RA 4WD Pickup (14 inch) (Disc / 295mm Drum)
TFG6, TFG7 2 & 4WD JS, Diesel, 4 cyl petrol
TFR,TFS 4x2, 4WD (Disc / 254mm Drum)

Isuzu

Big Horn (November 1986 - June 1987)

View all variants

2.0 UBS12, UBS13, 2.2 UBS52 (Disc / Drum)
2.0 UBS12, UBS13, 2.2 UBS52, 2.8 UBS55 (Disc / Drum)
2.2 UBS52 (Disc / Drum)
2.6 UBS17, 2.8 UBS55 (Disc / Disc)
3.0 UBS73, 3.5 UBS26
3.1 UBS69, 3.2 UBS25

Isuzu

Faster (1980 - 1984)

View all variants

KDB Series
KFR, TFS Series

Isuzu

MU (1989 - 1993)

View all variants

2.6, 2.8 UCS17, UCS55
2.8 UCS55, 3.0 UES73, 3.1 UCS69
3.2 UER25, UES25 (Disc / Disc)
3.2 UER25, UES25 (Disc / Drum)

Isuzu

Pick-up (1990 - 1995)

View all variants

2WD & 4WD
Pick-up

Isuzu

Trooper (1988 - 1992)

View all variants

Trooper (USA)
Trooper (USA) (4 Wheel Disc)
Trooper (USA) (Disc / Drum)

Rear

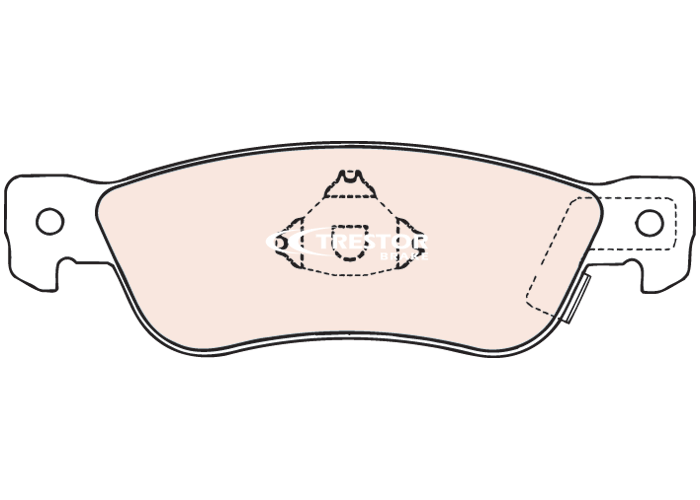

TDB1161

Type

Disc Pad Set

Dimension

4 Pads 131 x 43 x 13 mm

Structure

LH Inner + LH Outer + RH Inner + RH Outer

WVA

21522, 21563, 21743

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Holden

Jackaroo (1987 - 1992)

View all variants

3.1 UBS69
4WD
4WD (Alternative Rear Shoe)
4WD (Rear Shoe with Pin)
L2 V6 4WD,UBS25,UBS26

Isuzu

Big Horn (October 1987 - December 1991)

View all variants

2.0 UBS12, UBS13, 2.2 UBS52 (Disc / Drum)
2.0 UBS12, UBS13, 2.2 UBS52, 2.8 UBS55 (Disc / Drum)
2.2 UBS52 (Disc / Drum)
2.6 UBS17, 2.8 UBS55 (Disc / Disc)
3.0 UBS73, 3.5 UBS26
3.1 UBS69, 3.2 UBS25

Isuzu

MU (1989 - 1993)

View all variants

2.6, 2.8 UCS17, UCS55
2.8 UCS55, 3.0 UES73, 3.1 UCS69
3.2 UER25, UES25 (Disc / Disc)
3.2 UER25, UES25 (Disc / Drum)

Isuzu

Trooper (1988 - 1992)

View all variants

Trooper (USA)
Trooper (USA) (4 Wheel Disc)
Trooper (USA) (Disc / Drum)
